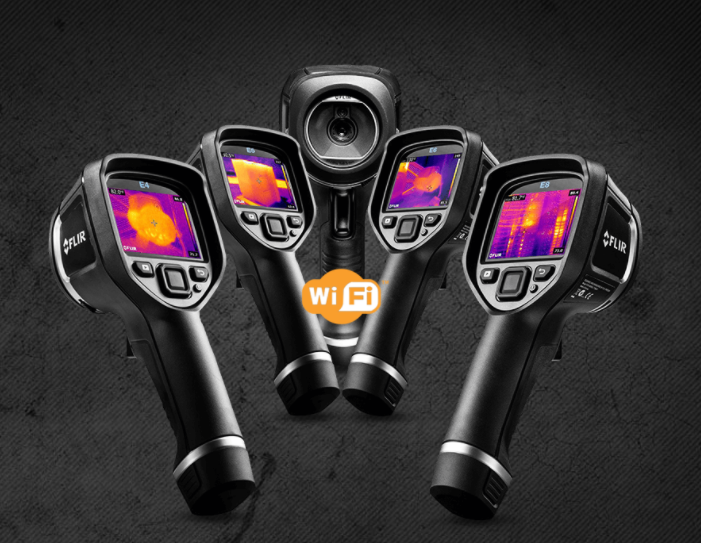

FLIR E4, E5, E6, and E8 with MSX Enhancement

FLIR E4, E5, E6, and E8 infrared cameras are powerful and extremely
cost-effective, easy-to-use troubleshooting tools for building, electrical, and mechanical applications. All include
MSX® technology that provides extraordinary thermal imaging detail. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment. Wi-Fi connectivity to smartphones and tablets via the FLIR Tools. Mobile app makes sharing images and sending reports from any
location easier, enabling you to make critical decisions faster. By providing thermal images to help you fi nd hidden problems along with accurate temperature measurements.

Features:

  • WI-FI CONNECTIVITY.
  • MSX®THERMAL IMAGE ENHANCEMENT
  • Quick-release battery is easy to remove, change, and recharge
  • Rapid image downloading via USB for sharing and documentation
  • FLIR Tools software to analyze images and create convincing reports
  • Variable emissivity and reflected temperature parameters for reliable results

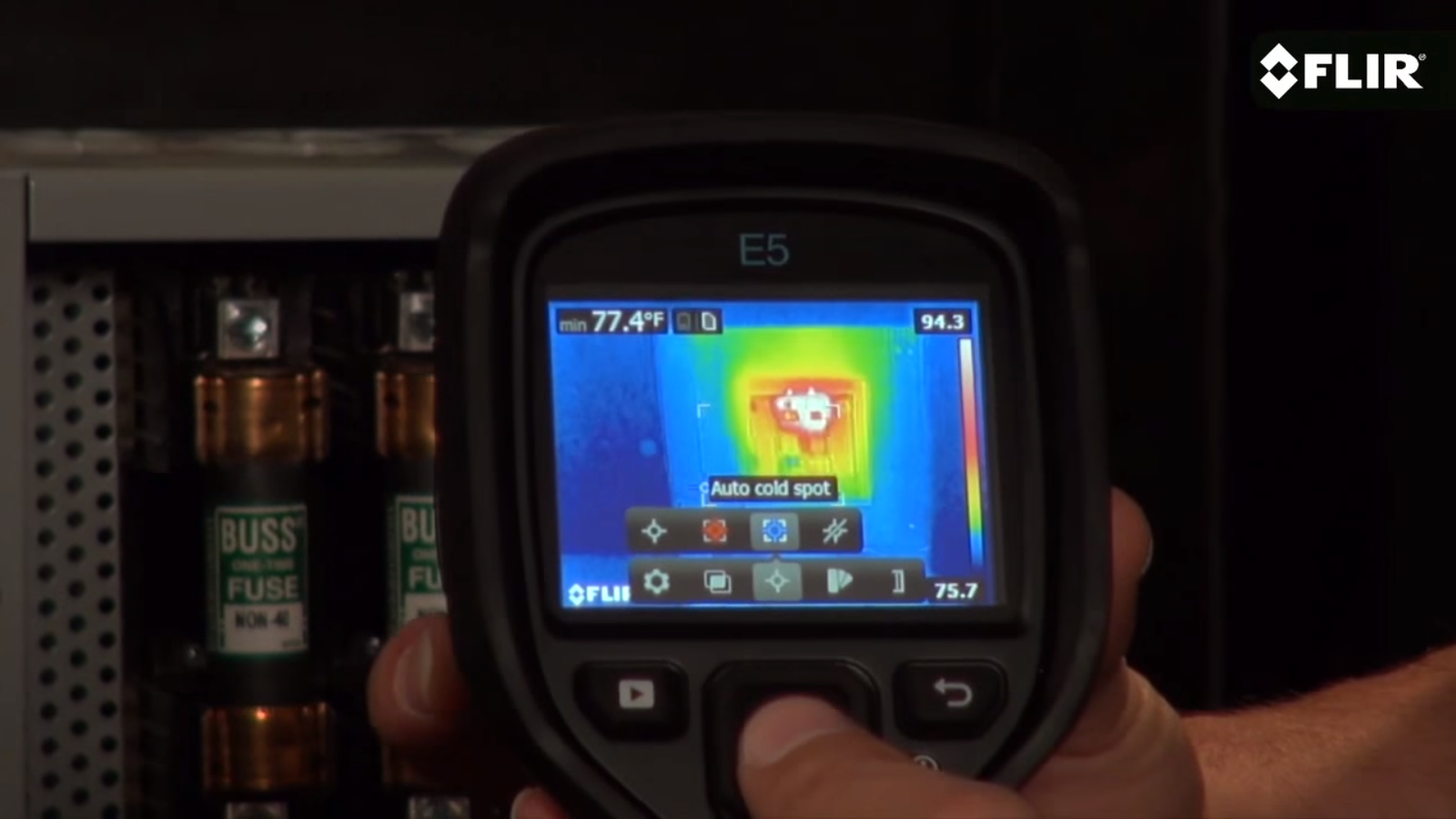

  • Area box with auto hot and cold spot hunts down extremes in no time
  • 2 years coverage on the camera, 5 on batteries, and 10 on the detector

Area Box Measurement mode (E5, E6 and E8) Each includes power supply/charger with four plugs, rechargeable battery, FLIR Tools software, USB cable, and hard transport case. E8 also includes extra battery and external battery charger.

SPECIFICATIONS:



Model FLIR E4 FLIR E5 FLIR E6 FLIR E8
IR Resolution 80 × 60 120 × 90 160 × 120 320 × 240
MSX Resolution 320 × 240
Thermal Sensitivity <0.15°C <0.10°C  <0.06°C
Field of View 45° × 34°
Focus Focus Free
Detector Uncooled Microbolometer
Screen 3.0 in. 320 × 240 color LCD
Frame Rate 9 Hz
Measurement Modes Spot (center) mode       2 modes: 1 Spot (center);           3 modes: 1 Spot (center);

1 Area Box (Min/Max)                 1 Area Box (Min/Max);

Isotherm (above/below)
