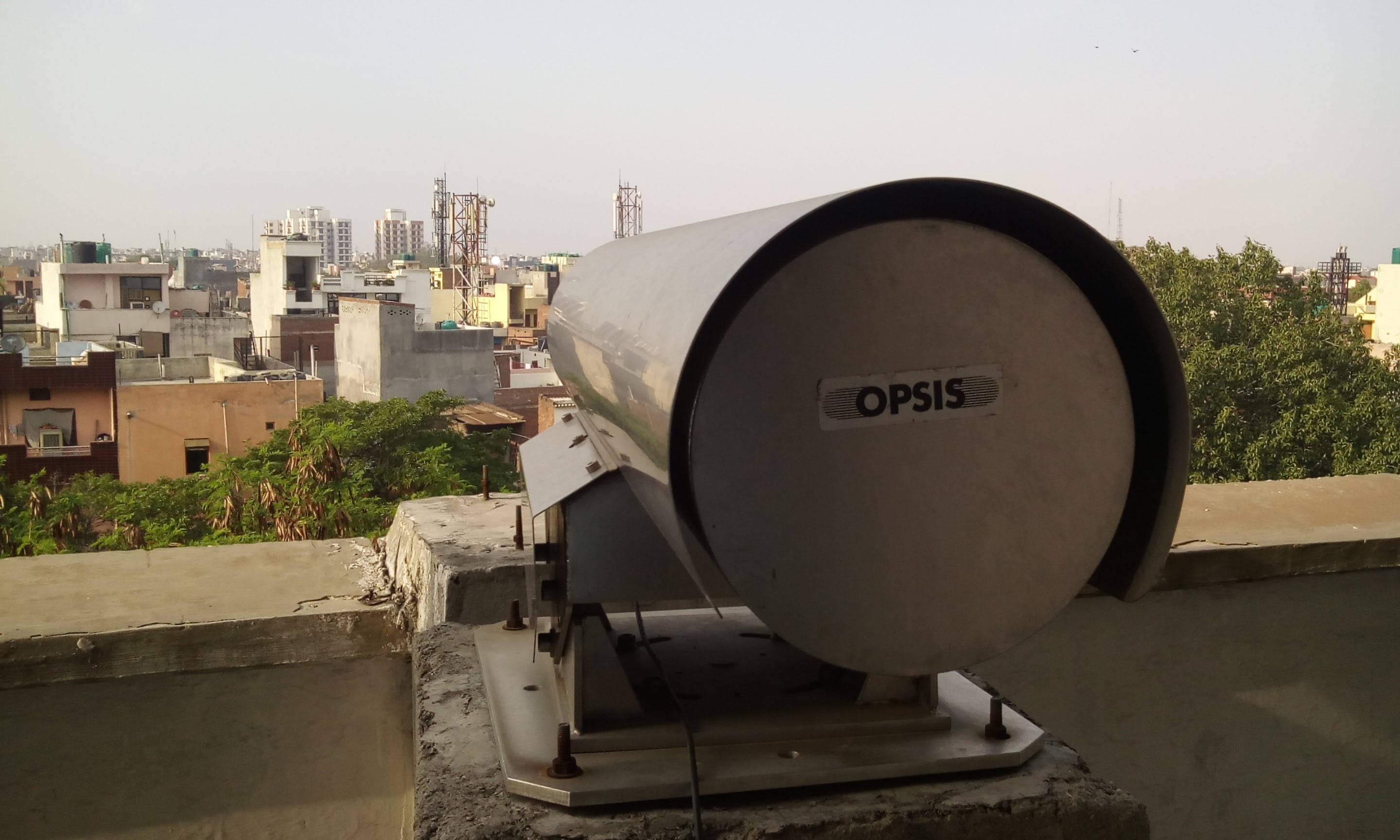

UV/IR Doas Based Open Path Air Quality Monitoring System [System 300(Opsis)]

The Opsis System 300 is a cost-effective, high-performance, air quality monitoring package, designed for trend, street-level and fence-line applications. The measurements are based on the DOAS technique (Differential Optical Absorption Spectroscopy), allowing continuous monitoring of several compounds. System 300 is available in three configurations:
BASIC: for sulfur dioxide (SO2), nitrogen dioxide (NO2), ozone (O3)
BTX: for Benzene, Toluene, Xylene
EXT: for SO2, NO2, O2, Benzene, Toluene, Xylene

Features:

  • Approved by MCERTS, TÜV and U.S. EPA & 19 other agencies across world.
  • Monitoring path length : 100 to 2000 meters or wider range.
  • One IR Interroferrometer Analyser can Monitor Several IR Gases
  • The System 300 is not affected by contaminated sample lines, NO2 converters, hydrocarbons, blocked filters etc., known problems which affect the data quality from point monitoring systems.



Measuring Parameters

NO2, SO2, O3, NO, NH3, NO3, HNO2, TRIMETHYLAMINE, ETHYLBENZENE, 1, 2, 4-TRIMETHYLBENZENE, 1, 3, 5-TRIMETHYLBENZENE, MONOCHLORBENZENE, DICHLORBENZENE, BENZENE, BROMOBENZENE, TOLUENE, P AND M-XYLENE, O-XYLENE, P, M AND O-CRESOL,STYRENE,FORMALDEHYDE,ACETALDEHYDE,CS2,COCL2,CH3CN (ACETONITRIL),CLO2,PHENOL,CL2,HCN,HCL,HF,CH4.
