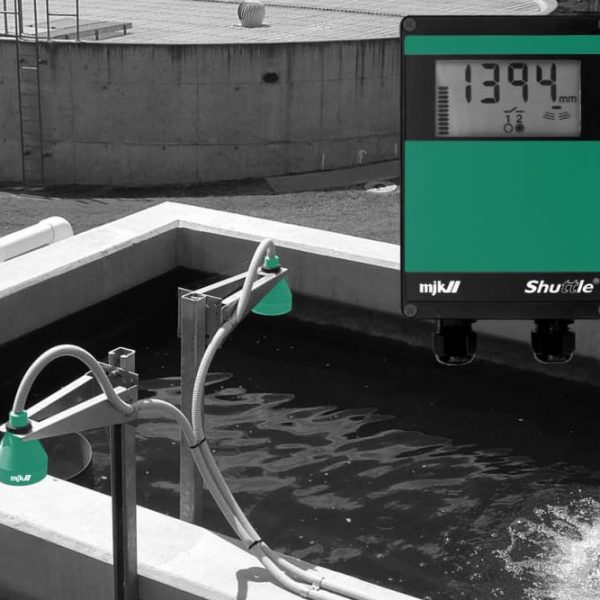

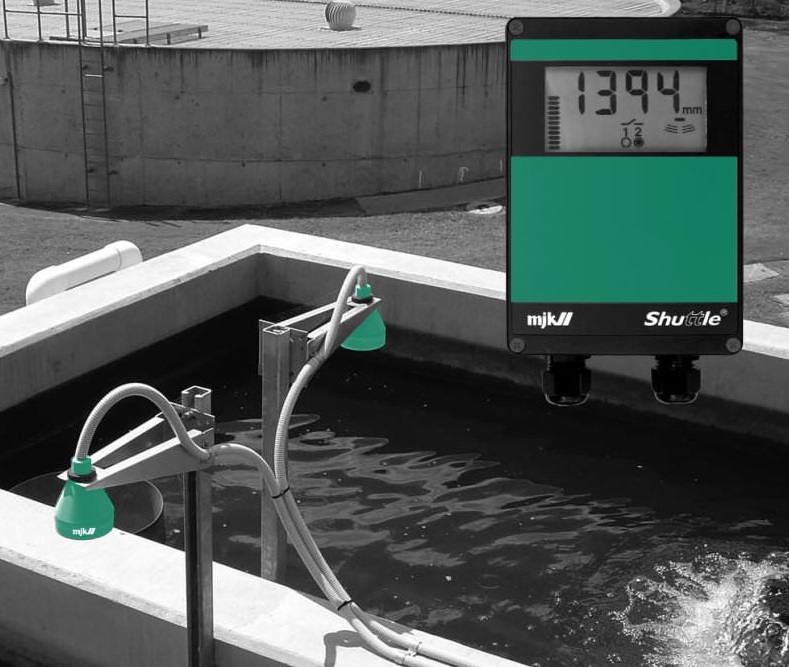

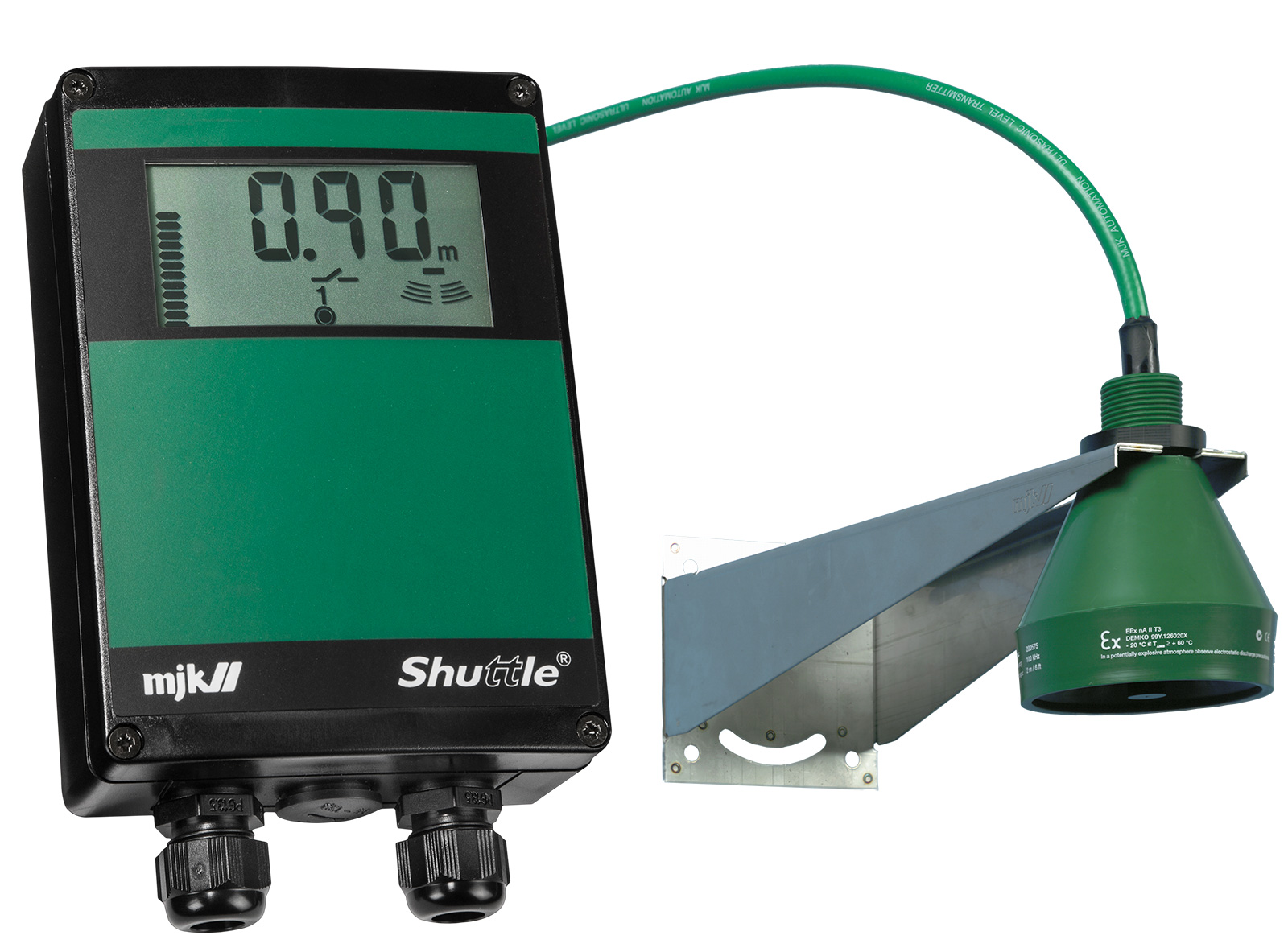

Level Transmitter and Controller

Shuttle® is an advanced microprocessor based ultrasonic level meter with an intelligent, precise measuring system utilizing the latest hardware and software technology. Shuttle® provides simple and logical operation, using advanced technology resulting in a high quality product at a competitive price.

Key points of Level transmitter:

• • Level transmitter with advanced features
  • Optimal ratio between features, user-friendliness, reliability, quality and price
  • Available with a range of sensors for ranges up to 25 m, and with enhanced chemical resistance
  • Narrow 3º beam angle allows applications in narrow wells.
  • Short blocking distance of 35 cm
  • Ranges from 10cm up to 15 m with one sensor model
  • Automatic start-up function.
  • 2 build-in output relays for pump control

Features of Level Transmitter:

• Only 35 cm dead band
• 0-10 cm ……10 – 25 m in one unit
• ± 0,2 % accuracy of measuring range
• Advanced learning function
• Build in pump Control
• Flexible installation
• Best Level measurement performance

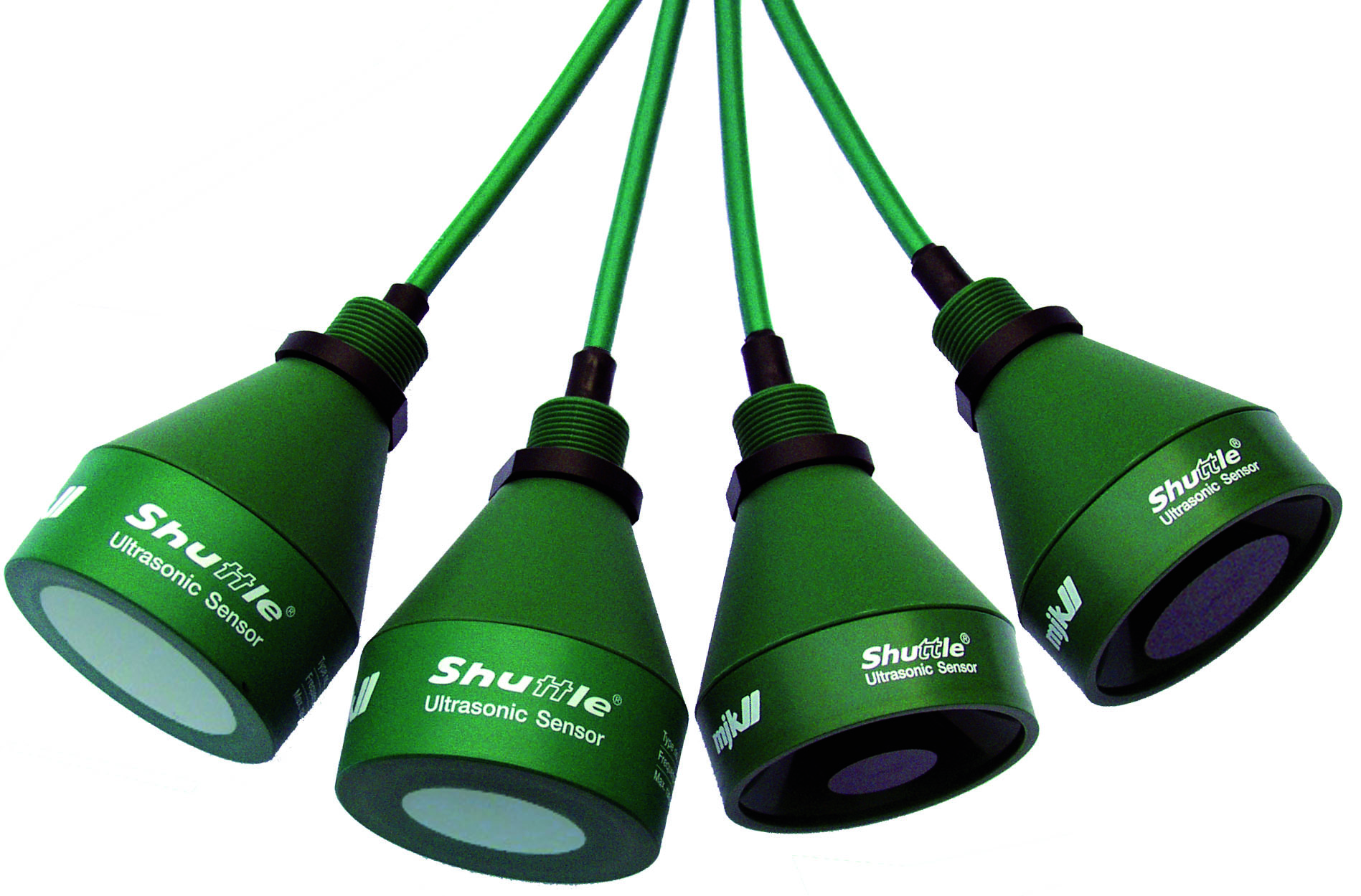

Key points of Ultrasonic Sensors:

• Various sensor options
• MJK Ultrasonic sensors for FM approval for hazardous areas, class 1, div 1 applications group A-G.
• Chemical resistant sensor made of PVDF – is suitable for measurements in tanks with aggressive liquids.

Match Sensors to applications:

• 3° beam handle turbulence and surface debris, and allows installation in crowded wet wells or on sidewalls
• 6° – 7° Broader beam handles solids level and long distances measurement
• Sensors with FM approvals for use in explosion hazard areas.
• Chemically resistant sensor for chemical storage tank applications.

Adaptable Wherever Level is Measured:

• Lift stations
• Storm flow installations
• Sewage plants
• Sludge Storage
• Drinking water facilities
• Process and food industries
• Solids levels
• Open channels, flumes and weirs
